Description

HEX ezCAN PURE Accessory Manager for Yamaha Tenere 700

The HEX ezCAN PURE reads actual vehicle signals to provide the full range of ezCAN configuration features, including the intelligent HEX ezBUS system.

The HEX ezCAN PURE lets you power and operate connected accessories, but with an extra helping of unlimited possibility!

The HEX ezCAN PURE listens for electrical On/Off control inputs, making it compatible with most 12-volt motorcycles, cars, SUVs, pickups, 4x4s, agricultural vehicles, and more.

Additional ezBUS Low-Power Output (JWPF Connector)

The HEX ezCAN PURE Universal Accessory Manager also features an extra low-power ezBUS circuit connection via a JWPF connector.

When the white circuit is configured as an ezBUS-Ready accessory in the HEX ezCAN configuration software, riders can connect ezBUS-Ready accessories to the white circuit and connect an additional low-power ezBUS accessory to the dedicated JWPF output—such as an ezSWITCH.

Included in the box:

• 1x HEX ezCAN PURE Device
• 1x HEX ezCAN Generic Signal Input Harness (input cables for ignition, high beam, horn, brake, and left & right turn signal)
• 4x 15mm length adhesive heat shrink (6.4 mm ⌀)
• 1x 40mm length adhesive heat shrink (9.5 mm ⌀)
• 1x 1.4m length of automotive braid (4mm ⌀)
• 1x 1.4m length of automotive braid (6mm ⌀)
• 6 x Posi-tap
• 1x USB C Cable
• 4x 2-wire stub connectors (Black/Orange)
• 4x 1-wire terminal wires (Orange)
• 4x Blanking seals
• 3x Blanking Plugs
• 20x Cable Ties

HEX ezCAN PURE Plug & Play Harness for Yamaha Tenere

Make your HEX ezCAN PURE installation quicker, cleaner, and easier with the HEX ezCAN Plug & Play Harness

Compatible with:

• Yamaha Tenere 700 (2025+)

Included in the box:

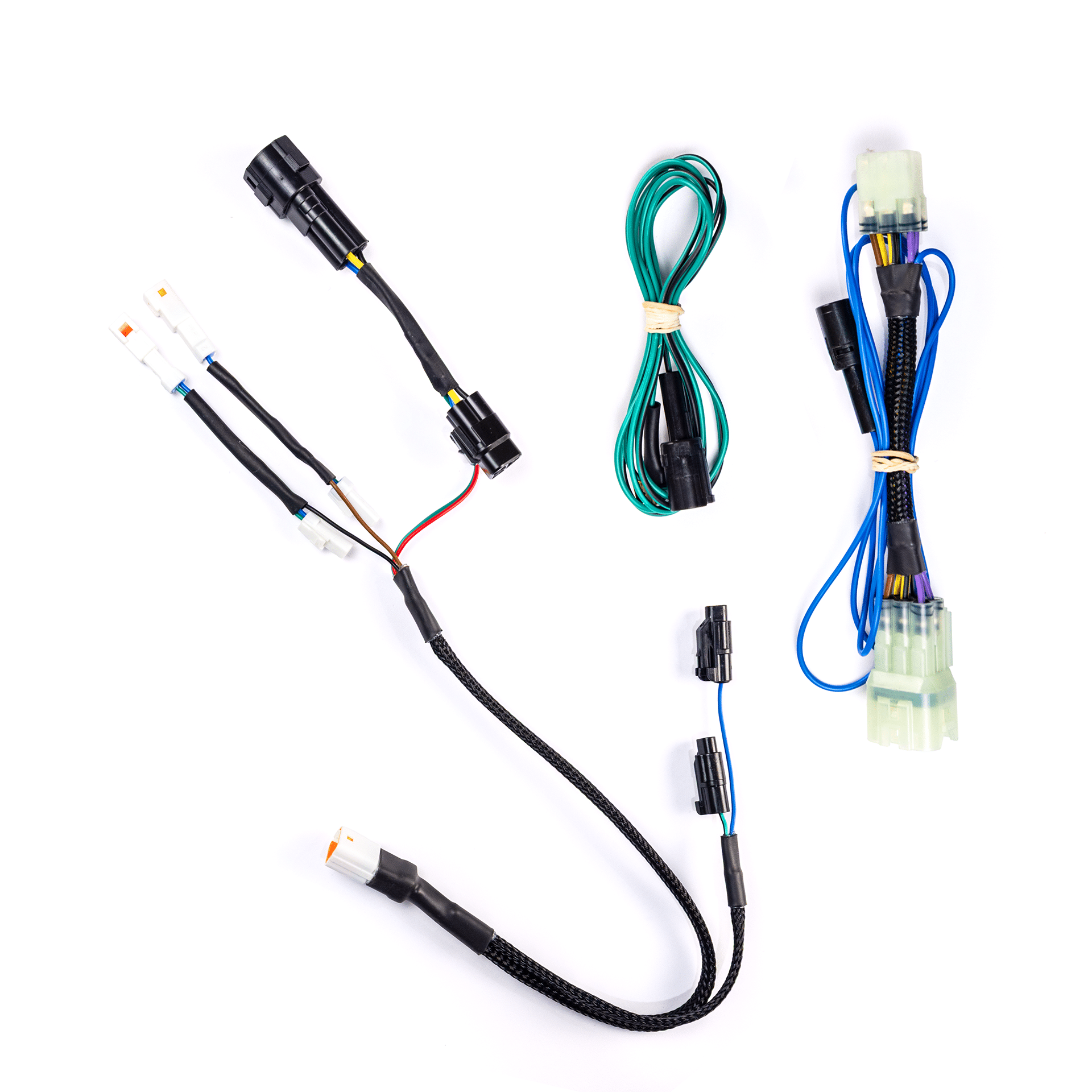

• HEX ezCAN PURE Plug & Play harness for Yamaha 2025 T7
• Tenere 6-pin High Beam Splitter
• Horn Harness

Designed specifically for the Yamaha Tenere 700, this model-specific harness plugs directly into the bike’s existing factory connectors, allowing the ezCAN PURE to access key on/off trigger signals without cutting or splicing into the wiring loom.

It provides trigger signal access for:

• Ignition
• High beam
• Horn
• Brake light
• Left and right turn signals

Important: This harness is designed to work only in conjunction with the HEX ezCAN PURE Universal Accessory Manager. As it is simply a wiring harness, it does not provide accessory control on its own, and it is not compatible with any other HEX ezCAN models.

Easy to follow install instructions included
