Description

HEX ezCAN PURE Universal Accessory Manager

The HEX ezCAN PURE is a universal accessory controller that can be installed on almost any vehicle.

It reads actual vehicle signals to provide the full range of ezCAN configuration features, including the intelligent HEX ezBUS system.

Details

The HEX ezCAN PURE lets you power and operate connected accessories. but with an extra helping of unlimited possibility!

Model-specific HEX ezCANs listen for proprietary CAN-bus control inputs only, while the HEX ezCAN PURE listens for electrical On/Off control inputs, making it compatible with most 12-volt motorcycles, cars, SUVs, pickups, 4x4s, agricultural vehicles, and more.

Additional ezBUS Low-Power Output (JWPF Connector)

The HEX ezCAN PURE Universal Accessory Manager also features an extra low-power ezBUS circuit connection via a JWPF connector.

When the white circuit is configured as an ezBUS-Ready accessory in the HEX ezCAN configuration software, riders can connect ezBUS-Ready accessories to the white circuit and connect an additional low-power ezBUS accessory to the dedicated JWPF output—such as an ezSWITCH.

Included in the box:

• 1x HEX ezCAN PURE Device

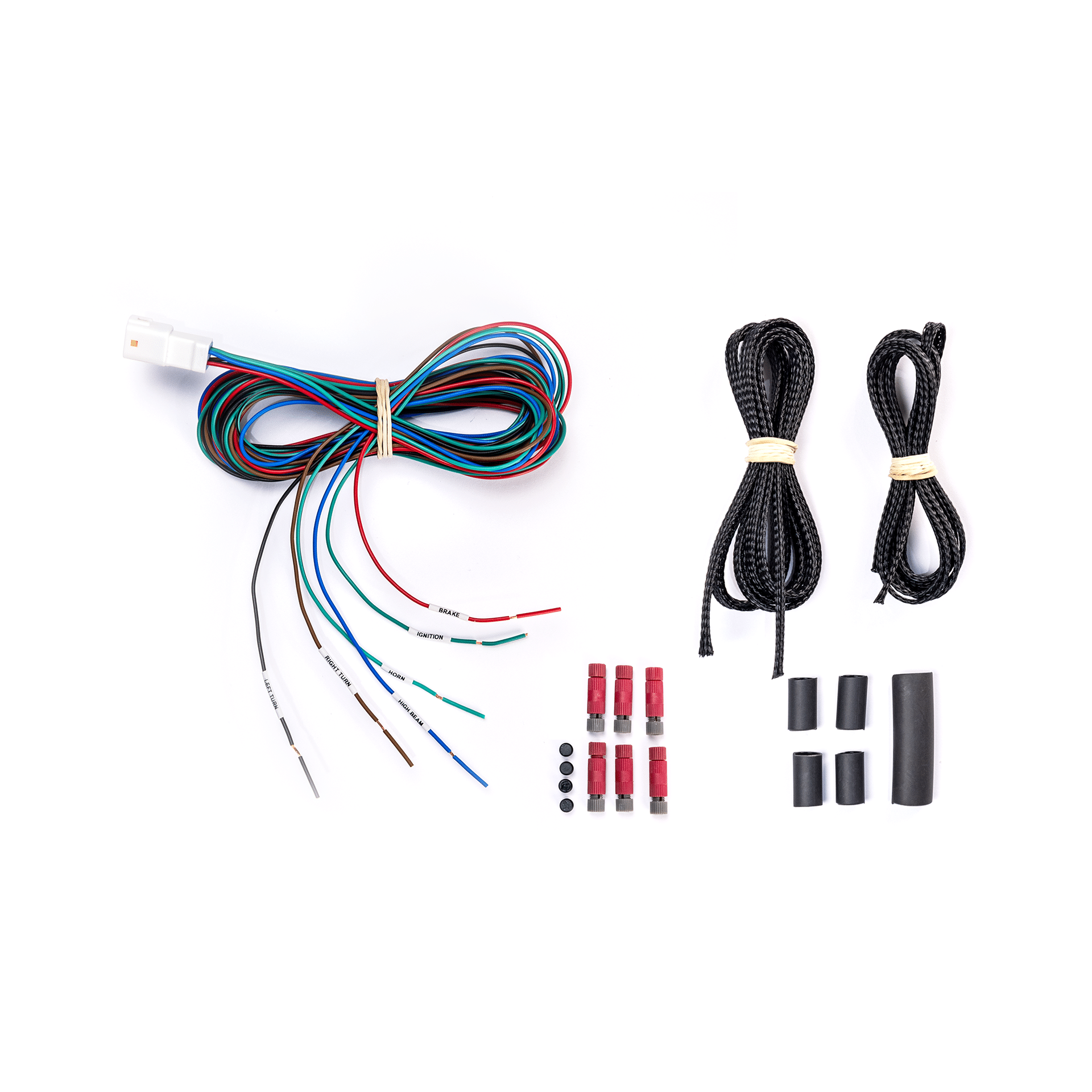

• 1x HEX ezCAN Generic Signal Input Harness (input cables for ignition, high beam, horn, brake, and left & right turn signal)
• 4x 15mm length adhesive heat shrink (6.4 mm ⌀)
• 1x 40mm length adhesive heat shrink (9.5 mm ⌀)
• 1x 1.4m length of automotive braid (4mm ⌀)
• 1x 1.4m length of automotive braid (6mm ⌀)
• 6 x Posi-tap

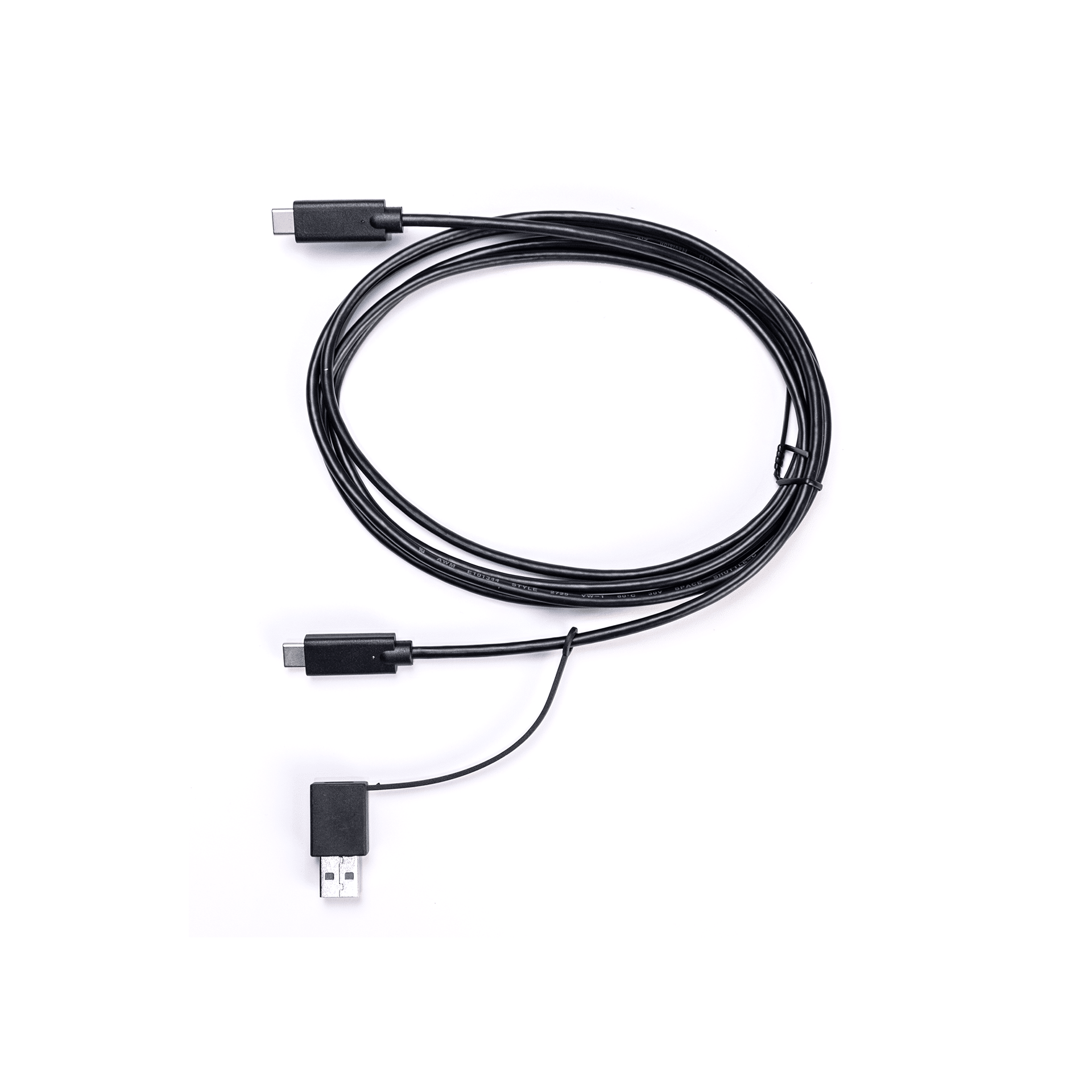

• 1x USB C Cable

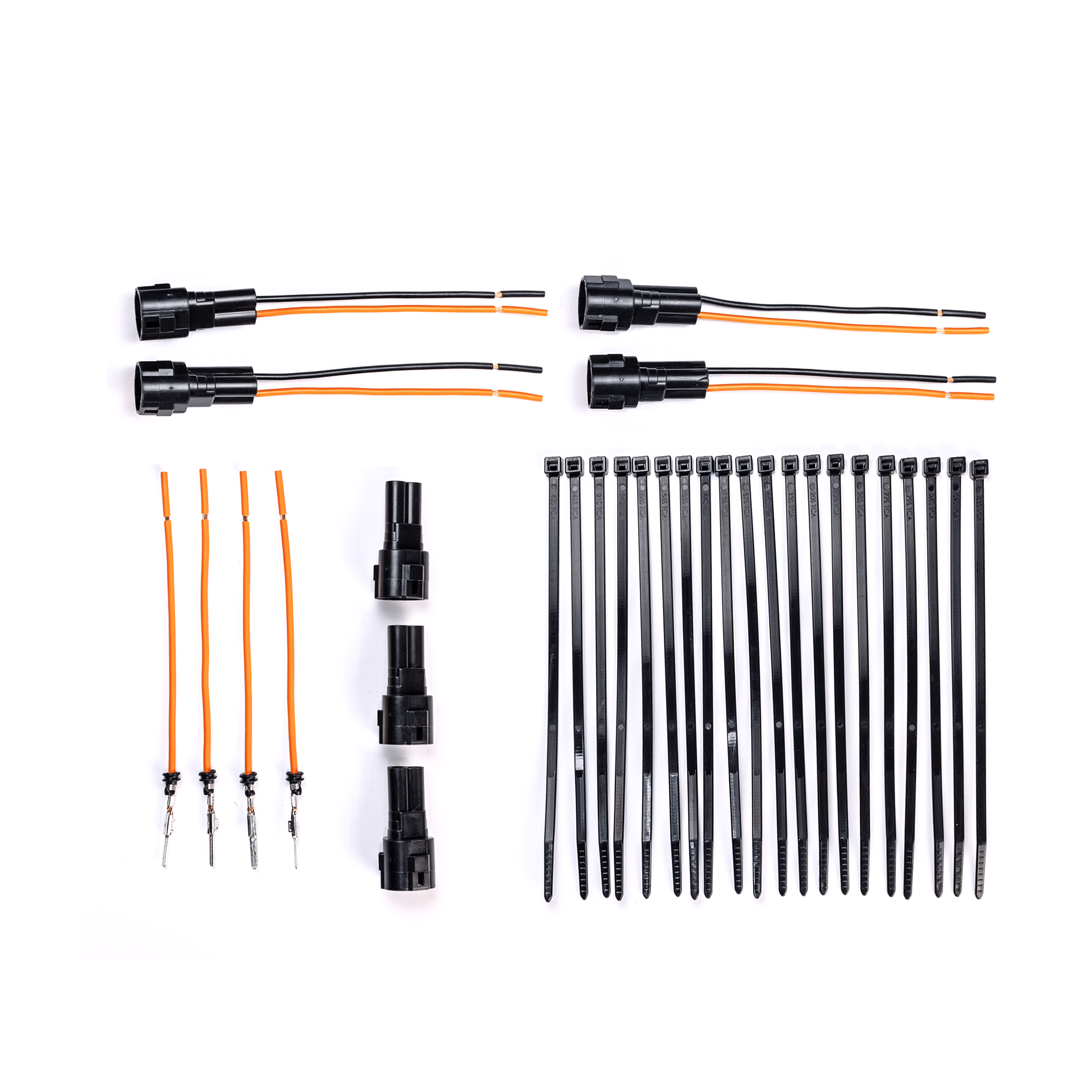

• 4x 2-wire stub connectors (Black/Orange)
• 4x 1-wire terminal wires (Orange)
• 4x Blanking seals
• 3x Blanking Plugs
• 20x Cable Ties

Easy to follow install instructions included
