Description

Essential to understanding how your bike works, and keeping it maintained – everything you ever wanted to know about your CRF1100

Comes as a set of 2 volumes:

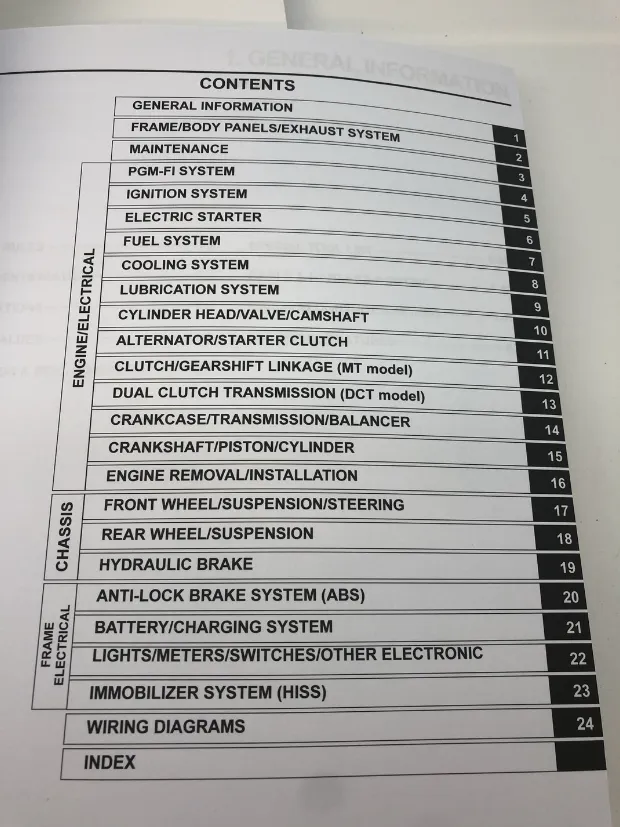

VOLUME 1

1. GENERAL INFORMATION
2. FRAME / BODY PANELS / EXHAUST SYSTEM
3. MAINTENANCE
4. PGM-FI SYSTEM
5. IGNITION SYSTEM
6. ELECTRIC STARTER
7. FUEL SYSTEM
8. COOLING SYSTEM
9. LUBRICATION SYSTEM
10. CYLINDER HEAD / VALVE / CAMSHAFT
11. ALTERNATOR / STARTER CLUTCH
12. CLUTCH / GEARSHIFT LINKAGE (MT MODEL)

VOLUME 2

13. DUAL CLUTCH TRANSMISSION
14. CRANKCASE / TRANSMISSION / BALANCER
15. CRANKSHAFT / PISTON / CYLINDER
16. ENGINE REMOVAL / INSTALLATION
17. FRONT WHEEL / SUSPENSION / STEERING
18. REAR WHEEL / SUSPENSION
19. HYDRAULIC BRAKE
20. ANTI-LOCK BRAKE SYSTEM (ABS)
21. BATTERY / CHARGING SYSTEM
22. LIGHTS / METERS / SWITCHES / OTHER ELECTRONIC
23. IMMOBILIZER SYSTEM (HISS)
24. WIRING DIAGRAMS
25. INDEX

The manual covers all of the 2020 and 2021 CRF1100 models – standard Africa Twin, Adventure Sports, Electronic Suspension, Manual Transmission and DCT:

• CRF1100A
• CRF1100AL
• CRF1100A2
• CRF1100AL2
• CRF1100A4
• CRF1100AL4
• CRF1100D
• CRF1100DL
• CRF1100D2
• CRF1100DL2
• CRF1100D4
• CRF1100DL4
