Touratech Extreme2 Plug & Travel Shock Absorber Set – BMW R1200GS & R1250GS – 2013-2024

This Item Is Suitable For The Following Models:

• BMW R1200GS -2013 – 2019
• BMW R1250GS – 2019 – 2024

As the Extreme2 is built to your specific requirements, there is a leadtime of 3-4 weeks.  In order that we may specify your suspension just for you, and your requirements, please complete this Suspension Check Form

Celebrate the 35th anniversary with Touratech and experience the limited “35 ANNIVERSARY EDITION” of the Touratech Extreme2 suspension – developed for maximum performance in the toughest off-road conditions. For those who push their Bike to the limit, these shocks are the essential upgrade that gives you full control in extreme conditions.

– Large, finely graduated adjustment range for 100% individual adjustment.

– Improved bottom-out protection thanks to optimized PDS function.

– Innovative “low friction” piston band – minimizes friction, maximizes reaction speed.

The newly developed damper sets new standards in individualization and user-friendliness. With an extended adjustment range, the rebound and compression damping can be adjusted precisely and finely graduated in order to tune the suspension precisely to individual requirements.

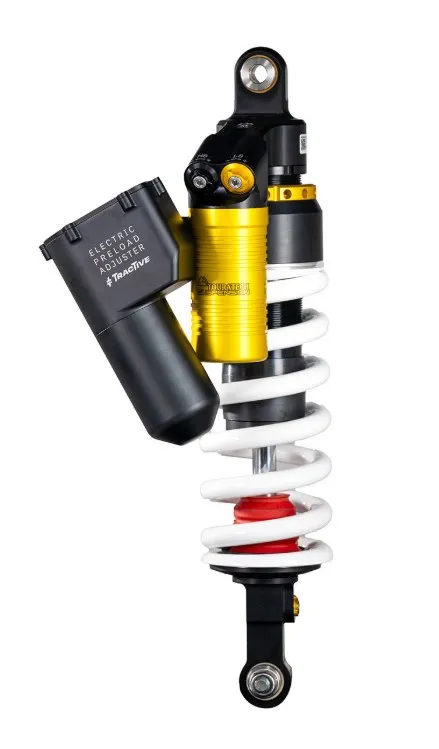

Thanks to the new electronic spring preload in a compact design, installation is quick and uncomplicated – without the need for the usual external EPA pumps. Robust, space-saving and efficient, it optimizes the suspension, while the pump makes unobtrusive use of the available space and the GS remains slim and always ready for any adventure.

With a 46 mm damper piston equipped with a low-friction piston band, the system ensures an extremely direct and sensitive response. The separating piston contains an additional guide that supports low-friction sliding and thus further improves the response behavior.

The enhanced function of the progressive damping system (PDS) with a newly designed hydraulic stop reliably prevents bottoming out, even in extreme situations. An enlarged, two-part reservoir provides more oil volume and a maximized cooling surface, which enables effective heat dissipation and guarantees constant damper performance even under extreme loads.

Various adjustment options make the “Limited Edition” suspension elements a flexible system. While the rebound damping is adjusted at the base of the shock absorber, the double compression adjustment on the reservoir can be precisely adjusted over a particularly wide adjustment range. The low and high-speed ranges are also particularly easy to adjust using differently color-coded adjusters.

For vehicles with electronic DDA suspension, the tuning package includes matching cancellation plugs, which are simply plugged into the existing connectors and prevent error messages in the cockpit.

Like all suspension elements from Touratech Suspension, the new “Limited Edition” shock absorbers are fully serviceable. After intensive rides or loads, the shock absorbers can be dismantled and overhauled to ensure consistent performance and long-term riding enjoyment under extreme conditions.

Scope of delivery:

– 2x limited “TOURATECH SUSPENSION 35 ANNIVERSARY EDITION” stickers

– Ready-to-install Touratech Suspension shock absorber for front

– Ready-to-install Touratech Suspension shock absorber for rear

– Cancellation plugs

The basic setup installed here is designed for riders up to 100 kg plus luggage, but as each set of the Extreme2 is built to your specific requirements, there is a leadtime of 3-4 weeks.  In order that we may specify your suspension just for you, and your requirements, please complete this Suspension Check Form

A Couple Of Frequently Asked Questions:

What is DDA?

On BMWs DDA stands for Dynamic Damping Adjustment (or Dynamic Damping Assistance). This is a feature of Touratech’s Extreme2 shock absorbers , that allows the suspension’s damping to adjust automatically and in real-time to the riding situation.

Key features of DDA:

• Automatic Adjustment: The system uses a high-performance DDA valve (patented by Tractive) to change the damping characteristics in fractions of a second based on the riding surface and conditions.
• Integration: Aftermarket DDA systems are designed to integrate with the motorcycle’s original control units, allowing the rider to retain the use of the stock handlebar switches and riding modes (e.g., “Rain”, “Road”, “Dynamic”).
• Enhanced Performance: It is designed to provide better stability and handling, particularly for long-distance touring, by ensuring consistent and optimal damping regardless of the load or terrain.

BMW’s factory-installed version of this technology is typically called Dynamic ESA (Electronic Suspension Adjustment) or DDC (Dynamic Damping Control). The DDA systems are premium aftermarket alternatives that offer enhanced performance and durability, especially for heavy use or off-road conditions.

Can I Fit This Myself?

It is recommended that you take your bike to a competent company to have your new suspension fitted.

As a Touratech Authorised and Approved Suspension Centre we will be happy to provide a fitting service.  You will need to bring your bike to us and fitting takes 6-8 hours.  Please contact us for a quotation and we will provide a fixed fee cost – if it takes longer, we don’t charge any more.
