Description

Mutifunctional Gauge featuring Digital Speedometer reading (MPH KPH switchable) RPM counter with high visibility needle to10k RPM – perfectly suited for your Africa Twin.

We supply this instrument with a fully colour coded Africa Twin specific wiring diagram.

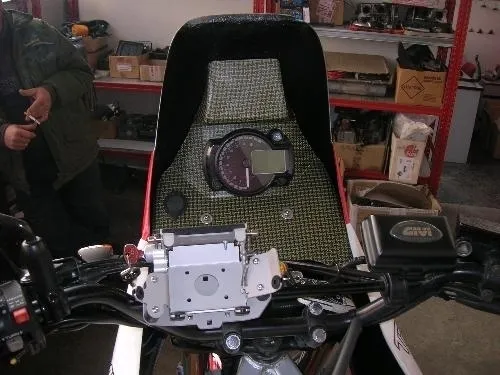

Here’s a couple of examples of this unit in use.

This is what happens on startup

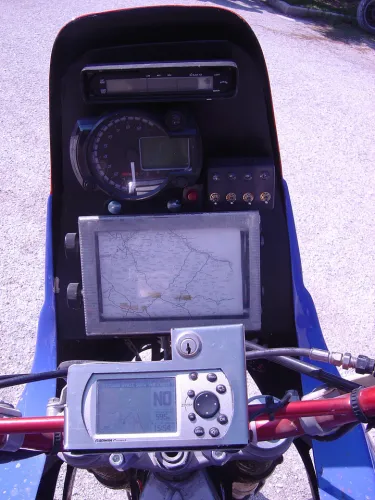

This is the RX2N in use

FUNCTIONS

Speed unit – switchable KMH / MPH alternative

Speedometer

• range – 0~360 km/h (0~223 MPH)

Odometer

• 0~99,999.9 km (mile)
• Trip Meter A – 0~999.9 km (mile)
• Trip Meter B – 0~999.9 km (mile)

Speeding warning

• setting range – 30~180km/h (20~110MPH)
• Top speed record – 0~360 km/h (0~223 MPH)
• Tire Circumference setting – 300~2,500 mm

Tachometer

• range – 0~10,000 RPM
• Display unit increments: 100 RPM

Over RPM shift light

• setting – 5,000~10,000 RPM
• Max RPM record – 0~10,000 RPM
• Stroke/ Piston setting – 4 Stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons

Temperature unit

• switchable – °C, °F

Digital water temperature

• range – 0~120°C (32~248°F)
• Display unit increments: 0.1°C (0.1°F)
• Temperature level gauge display range – 20~120°C (68~248°F)
• Display unit: 1 level = 10°C (50°F)

Digital oil temperature

• range – 0~120°C (32~248°F)
• Display unit increments: 0.1°C (0.1°F)
• Over temperature warning setting adjustable – 60~120°C (140~248°F)

Top temperature record

• 0~250°C (32~482°F)

Fuel gauge

• Display in 10 levels (one level means 10% fuel)
• Fuel resistance setting – 100 ? • 510 ?
• Insufficient fuel warning setting adjustable – 10~50%

Clock

• 24h Target speed timer – 30~360 km/h (20-220 MPH)
• Target distance timer – 50~1,000 m (1/32~20/32 mile)

Top Speed timer

the record includes:

• Speed: 0~360km/h (0~223 MPH)
• Distance: 0~999 m (0~3,280 feet)
• RPM: 0~15,000 RPM
• Timer: 0~9 `59 “99

Indicator lights:

• Direction indicator (green)
• High beam (blue)
• Oil (red)
• EOBD (amber)
• Engine Idle (green)
• Speeding (red)
