Plug & Play DENALI D3 Dual Intensity LED Light Kit – CRF1000 (All Models)

This is a complete Plug and Play Denali Dual Intensity LED Light Kit with the OEM Honda Fog Light Switch already built into the loom.

This kit fits the following models:

• Honda CRF1000 Africa Twin – 2016 – 2019
• Honda CRF1000 Africa Twin Adventure Sport – 2018 – 2019

This kit contains the following:

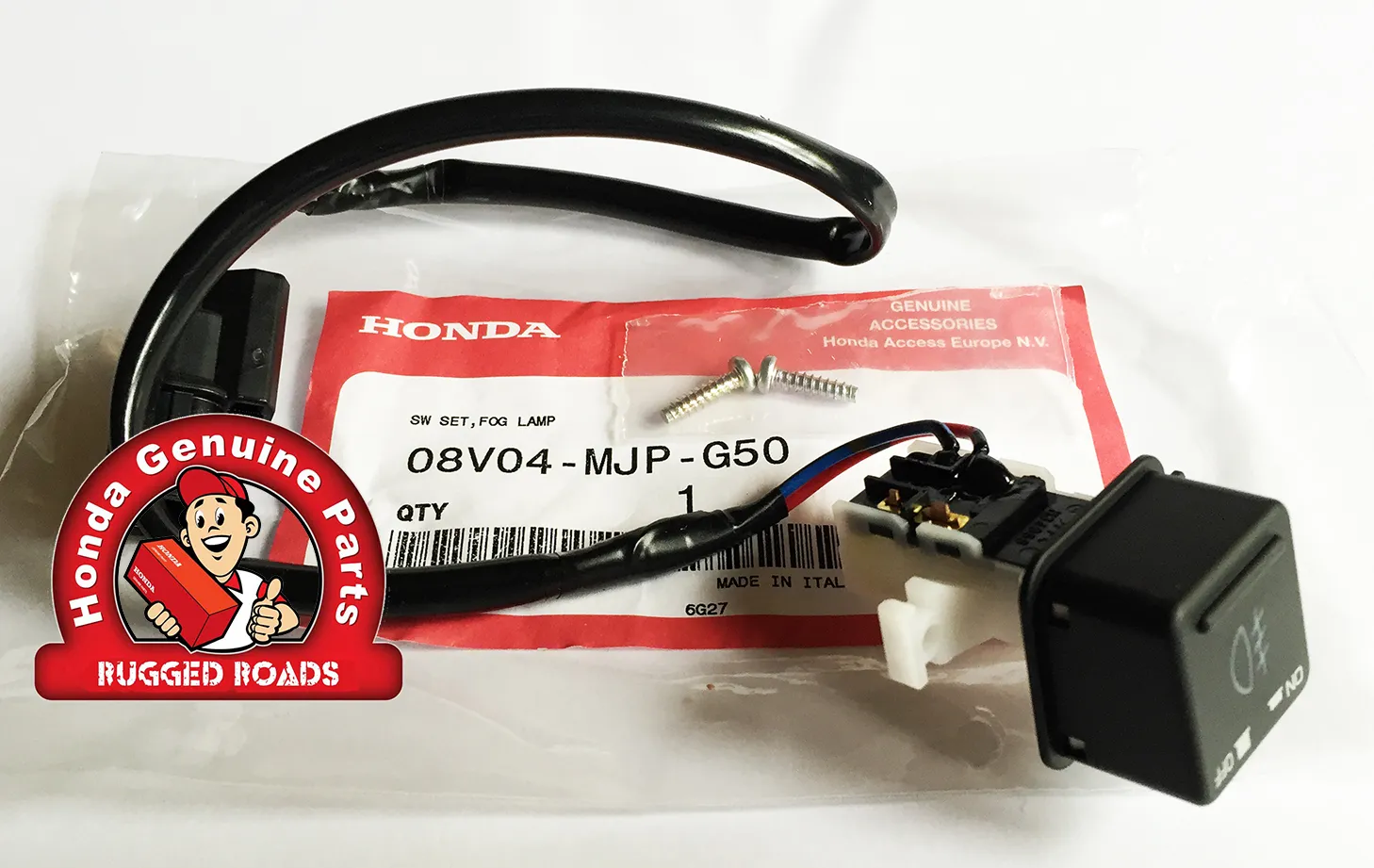

• 1 x OEM Honda Fog Light Switch

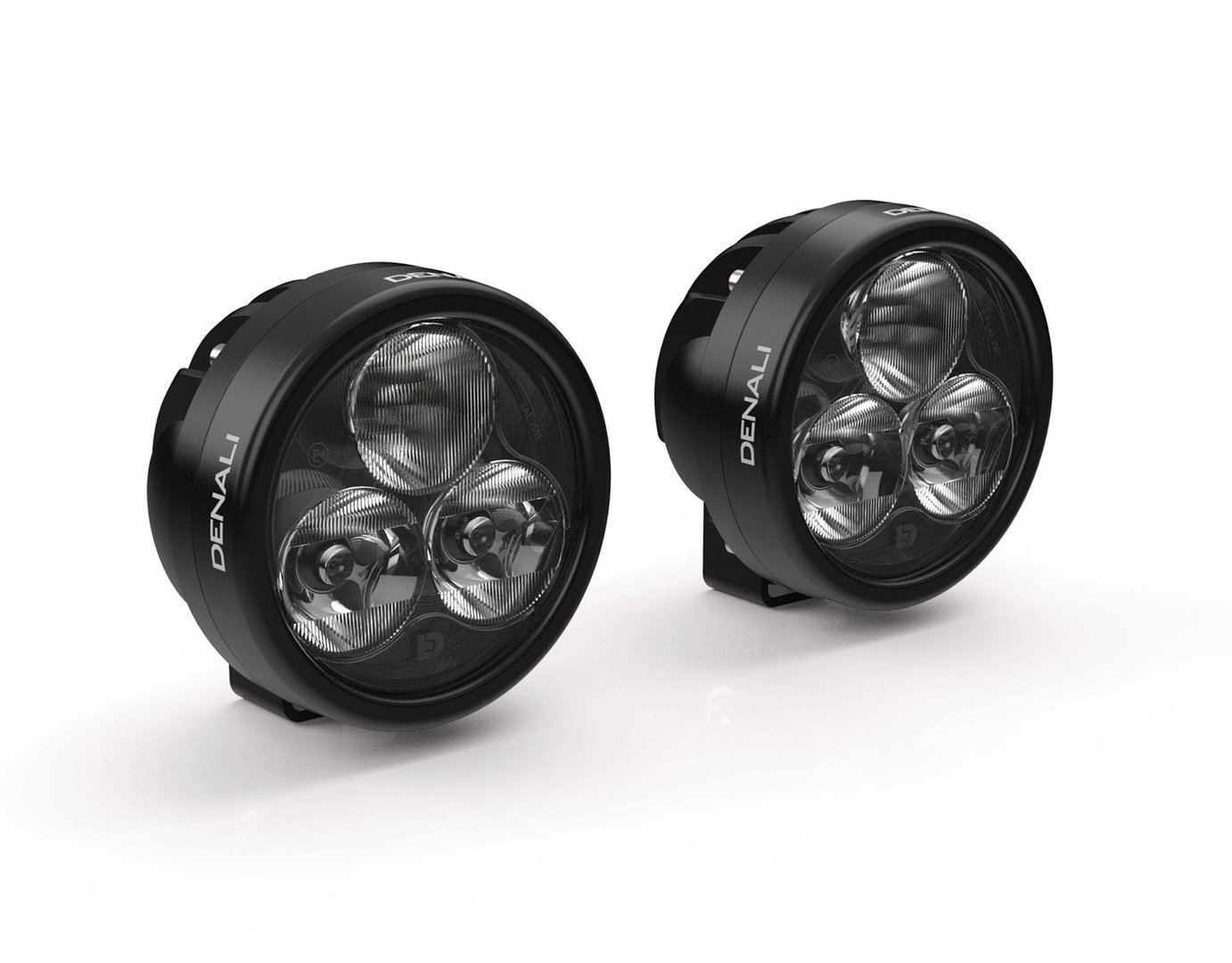

• 2 x Denali D3 LED Dual Intensity Driving Light Pods
• 1 x Denali DataDim Dual Intensity Controller Module
• 1 x Plug and Play Wiring Loom

This means that there is no cutting or tapping into the existing wiring on your CRF1000 or CRF1000 Adventure Sport – you just plug this kit into existing connectors that are already in your bike’s wiring loom.

The loom also has a connector allowing the fitment of the OEM Honda Auxilliary Power Socket as well or power a GPS.

This setup will operate the Denali lights as per the following:

• Engine Running / Fog Light Switch OFF / Denali Lights OFF
• Engine Running / Fog Light Switch ON / Denali Lights on at 50% DRL level
• Engine Running / Fog Light Switch ON / Main Beam ON (or flasher switch pressed) / Denali Lights on at 100%

Very neat install with no excess loom to try and find space for – specifically manufactured for the Honda CRF1000 Afria TWin and Adventure Sport.

Fits all models of CRF1000 Africa Twin, and CRF1000 Adventure Sport.

As there are a variety of mounting options, we have not included them within this kit.  Please see below for the different mounting options available.

Denali D3 LED Driving Light Pods with DataDim™ Technology

The new D3 LED lights are built upon a decade of DENALI innovation to deliver the highest performing 36-watt street-legal driving light to hit the market.

Our D3 driving light features our signature TriOptic™ beam system that includes a spot and hybrid driving lens with each light pod.

Unlike previous TriOptic™ lights, the D3 hybrid driving beam is ECE and SAE compliant to deliver an impressive street-legal high beam in North America and European Union countries.

But what if you’re not concerned with street-legal precision and just want off-road outrageous? We got you covered too! The D3 spot lens was engineered for maximum beam distance measuring over 1900 feet at 1 lux (per pair). No other 36-watt light even comes close. The spot beam is so impressive it actually outperforms top-tier competitors’ lights that are twice its size.

Features

• TriOptic™ Lens System (includes spot and hybrid lenses with each pod)
• Best in class street-legal spot and hybrid beams (SAE/DOT & ECE certified)
• High-Intensity Series Cree LEDs outputting 2100 lumens per pod
• DataDim™ 3-wire smart-dimming technology (compatible with all DENALI dimming controllers)
• DrySeal™ Submersible Waterproof light can withstand the most extreme environments
• Impact PC™ Polycarbonate bezels won’t crack, fade or corrode like traditional aluminum bezels.
• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
• Low profile mounting bracket with stainless steel hardware included
• Additional SAE/DOT & ECE certified hybrid driving lens included (spot lens installed)
• Amber & Selective Yellow lenses available

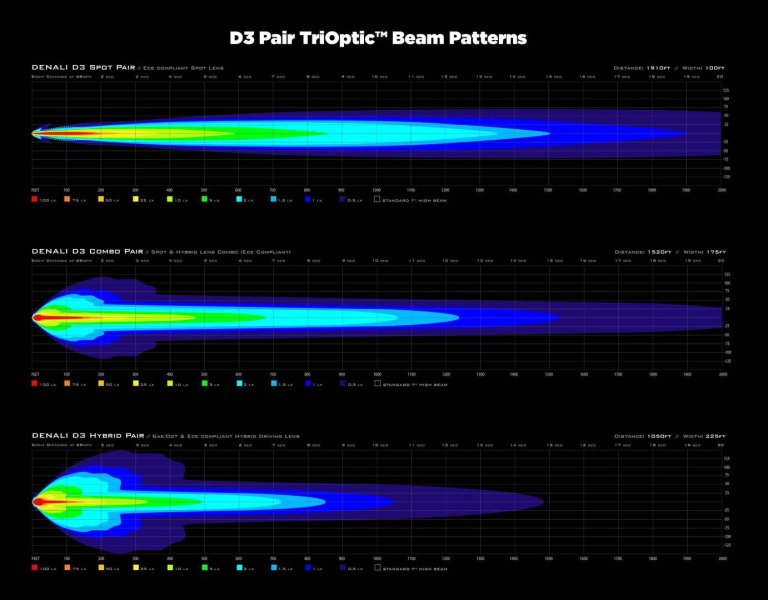

Beam Performance (pair)

Spot Beam

• Beam Distance (at 1 lux): 1910 feet (582 meters)
• Beam Width (at 1 lux): 100 feet (30 meters)

Combo Beam (1 spot, 1 hybrid)

• Beam Distance (at 1 lux): 1520 feet (463 meters)
• Beam Width (at 1 lux): 175 feet (53 meters)

Hybrid Beam

• Beam Distance (at 1 lux): 1050 feet (320 meters)
• Beam Width (at 1 lux): 225 feet (69 meters)

Specs (single pod)

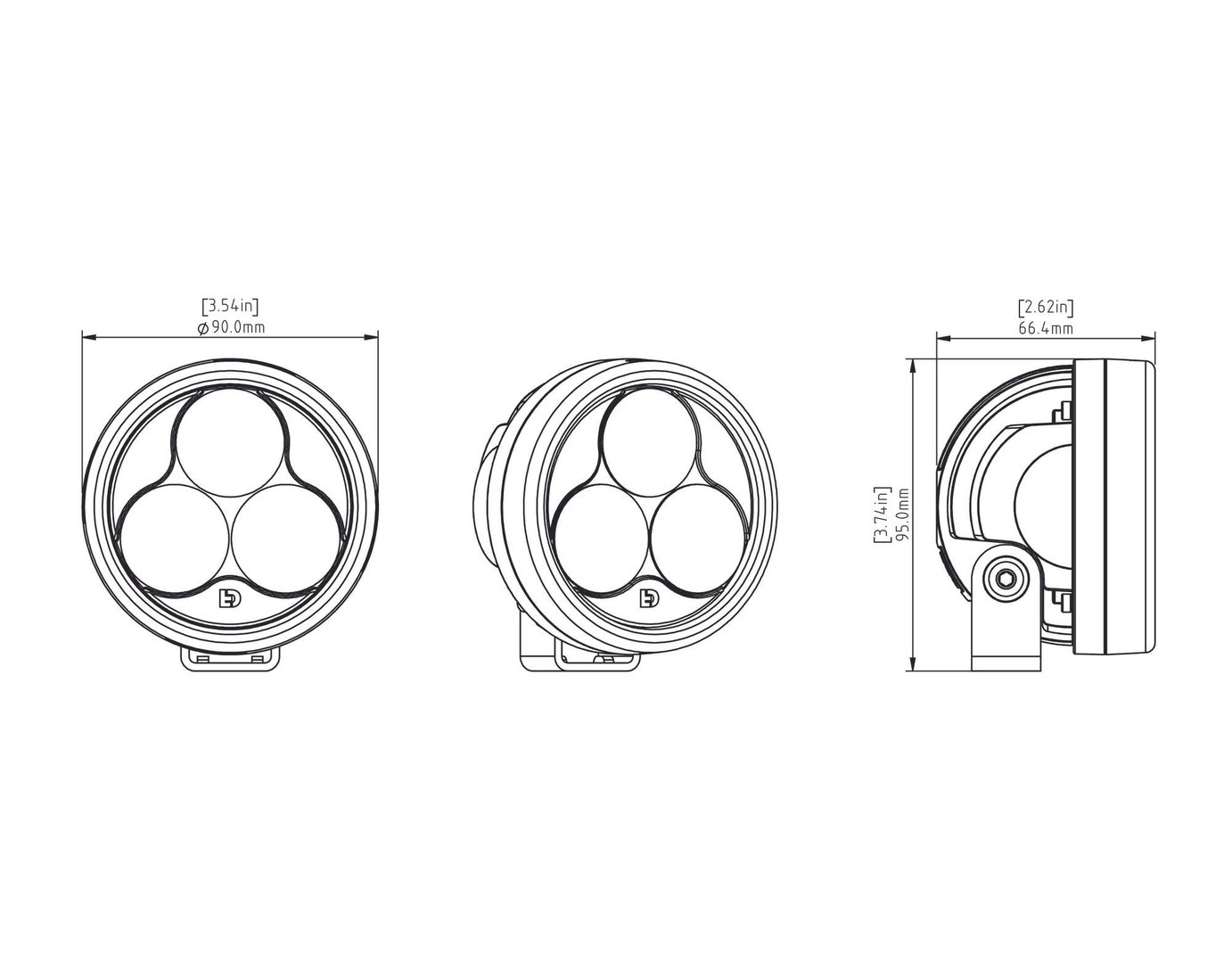

• Pod Size: 3.5″ (90mm) Round x 2.62″ (66mm) Deep
• LED: (3x) 11 Watt Cree XP-P LEDs
• Power Draw: 36 Watts (3 Amps)
• Lumens: 2100
• DataDim™ Compatible: Yes
• Operating Voltage: 9-32V DC
• IP67 Waterproof & Submersible
• Hybrid Lens Certifications: SAE/DOT J581 & ECE R112
• Spot Lens Certifications: ECE R112
