SW Motech – EVO High Beam Light Kit – Universal

This kit contains all parts required to easily and securely mount the EVO High Beam lights on the crash bar.

The crash bar clamps allow the fog lights to be mounted on crash bars with various pipe diameters.

EVO High beams

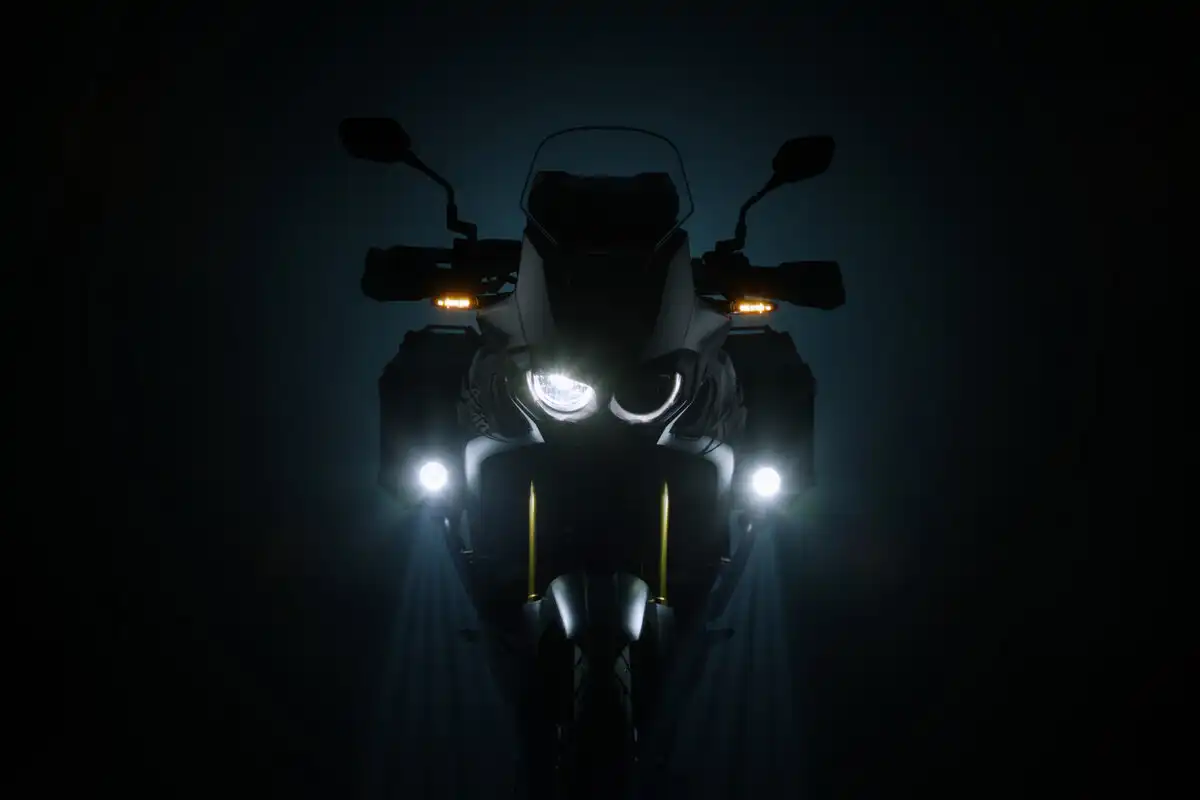

The highly concentrated light of the EVO high beams has a particularly wide range. This provides optimal lighting for the rider’s view and ensures safety during on- or off-road riding. SW-MOTECH sought out a reliable partner for the development of the new EVO fog lights and relied on the expertise of a long-standing top manufacturer from the automotive sector. Development is focused on meeting the strictest quality standards while also maintaining a compact shape: the EVO high beams are resistant to water and dust, with an IP69 protective class rating. Powerful LEDs provide the best view, while wear-resistant housings ensure long life.

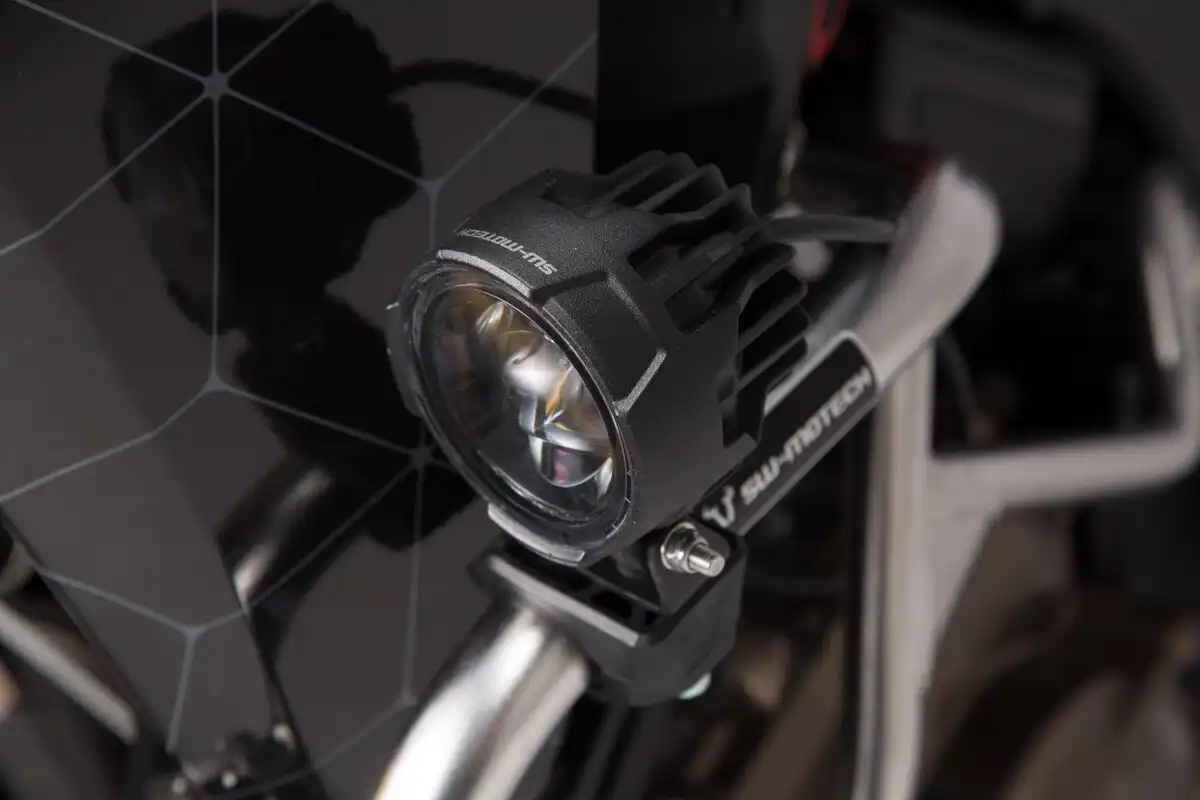

CRASH BAR CLAMPS FOR EVO LIGHTS

• For mounting on crash bars or other vehicle parts with the corresponding diameter
• For SW-MOTECH EVO lights
• Includes rubber inserts for adapting to 22/25.4/26/27 mm and 28 mm.
• Made from fiberglass-reinforced polyamide

Details

• Material: Polyamide
• Color: black
• Total Weight: appr. 0,2 kg / appr. 0.5 lb

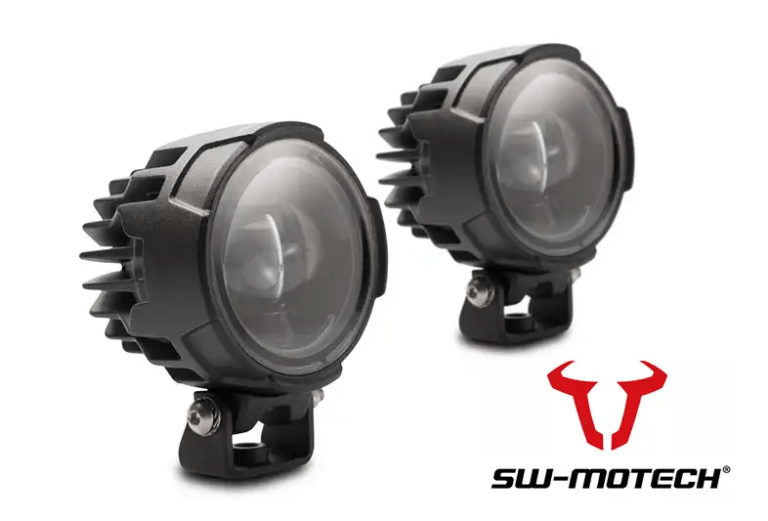

EVO HIGH BEAM LIGHTS

• Trouble- and maintenance-free operation due to almost wear-free LED, considerably reduced energy consumption
• Power output: 12 W each light
• Luminous flux: 800 LM each light
• ECE test mark: ECE R113 Rev.2
• Highly concentrated beam with long-distance range
• Compact size with a diameter of 7.1cm
• Water- and dustproof (safety class: IP69)
• Voltage: 12 V. Cable harness for easy connection to the motorcycle battery included in delivery, no change to motorcycle electric required
• Splash-protected, blue glowing handlebar switch for comfortable operation (Protection class: IPX4)
• Mounting points on all four sides
• Installation on headlight clamps for crash bar (Ø 22, 26, 27, 28 mm) or bike-specific brackets

Details

• Material: Aluminum
• Surface: powder coated
• Color: black
• Size: 7,1 x 7,1 cm / 2.8 x 2.8 in
• Total Weight: appr. 1,3 kg / appr. 2.9 lb
• Note: that due to the curvature of the reflector the “TOP” mark must always be at the top.

Included in delivery

• 2 x EVO High Beam lights, Aluminum, black
• 2 x Crash bar clamps for EVO lights, Polyamide, black
• 1 x Cable harness with safety device
• 1 x Handlebar switch
• Mounting instructions
• Mounting material

Details

• Material: Aluminum
• Surface: powder coated
• Color: black
• Total Weight: appr. 1,7 kg / appr. 3.7 lb
