OEM Honda Countershaft Replacement Kit – XRV650 RD03 (1988-89)

This kit contains all parts which the Honda Workshop Manual states ‘REPLACE’ when renewing the Countershaft.

All parts are also available separately – please search using individual part numbers.

The full kit contains the following OEM Honda parts:

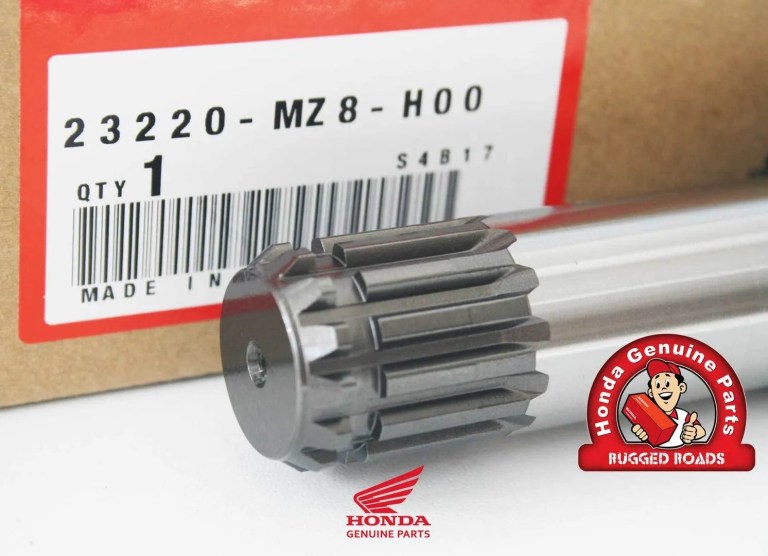

• 1 x 23220MZ8H00 – COUNTERSHAFT
• 1 X 91014969003 – BEARING, RADIAL BALL,5205 (NTN)
• 1 X 961406204010 – BEARING, RADIAL BALL, 6204U
• 1 X 11395MM9850 – GASKET, L. CRANKCASE COVER
• 1 X 11394MV1850 – GASKET, R. COVER
• 2 X AB6945 – GASKET, CYLINDER (Pattern Part as OEM Honda discontinued)
• 2 X 12251MN8911 – GASKET, CYLINDER HEAD
• 2 X 12391MF5750 – GASKET, HEAD COVER
• 1 X 19226MM9000 – GASKET, WATER PUMP COVER
• 1 X 91356169003 – O-RING
• 1 X 91356425005 – O-RING, 29.7 x 2.4 (NOK)
• 1 X 91302MB0013 – O-RING, 32.95 x 2.62 (ARAI)
• 1 X 91303MG7003 – O-RING, 13.8 x 2.5
• 2 X 91305MG7003 – O-RING, 5 x 1.7 (ARAI)
• 2 X 91306KK4003 – O-RING, 18 x 2.6 (ARAI)
• 1 X 91312MG7003 – O-RING, 24.4 x 3.1
• 1 X 91318ME5003 – O-RING, 5.6 x 1.9 (ARAI)
• 2 X 91356MA6005 – O-RING, 14.8 x 2.4 (NOK)
• 2 X 91315MF5003 – SEAL, OIL PIPE
• 2 X 91315MN8000 – SEAL, WATER PIPE, 16MM
• 1 X 91316MN8000 – SEAL, WATER PIPE, 28MM
• 2 X 90441706000 – WASHER, SEALING, 6MM
• 1 X 90441ME9000 – WASHER, SEALING, 8MM
