Description

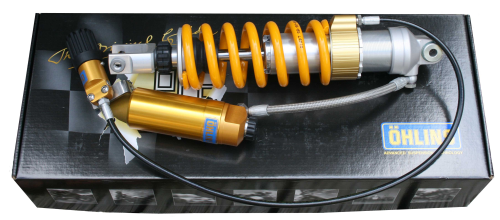

Ohlins HO 645 For XRV750 Africa Twin RD07/07A 1995-03

Ohlins Rear Shock Absorber

• Part # HO 645
• Type S46HR1C1S

Supplied as standard with 01096-26 spring (85 N/mm) for rider between 60/100Kg

Your Africa Twin should function on both dirt roads and asphalt roads, for both off-road riding that’s a bit rougher, and comfortable cruising along roads. At Öhlins we have therefore developed this shock absorber. It satisfies these apparently conflicting demands.

In other words, two different needs but only one shock absorber.

Like all shocks from Öhlins, those developed for Dual Sport are based on advanced technology, special materials and careful testing. Dual Sport shocks are based technically on motorcross and enduro. This involves handling extreme pressures over a long period.

However, they differ from them primarily in that they are tested and optimally adjusted. This ensures they also have great comfort and safety when riding on asphalt. By improving the performance of these shocks, they are therefore able to handle forest trails, dirt roads and surfaced public roads.

The shock for the Africa Twin is tailor-made for this bike. For instance, besides functioning on “raw” surfaces with respect to bottoming resistance, they also provide excellent comfort, stability and balance, both off-road and on surfaced roads.

Due to the fact that Dual Sport bikes have to deal with such widely varying areas of use, we have naturally fitted the shocks for these bikes with a very broad range of adjustments.

You are consequently able to do some off-road riding in the morning, and load up your panniers and hit the road in the afternoon, using the same shocks with their excellent qualities and durability the whole time.

Optional Upgrade Springs (extra cost option)

• 01096-19 (70 N/mm) for rider between 30/70Kg
• 01096-24 (80 N/mm) for rider between 50/90Kg
• 01096-29 (90 N/mm) for rider between 70/110Kg
• 01096-31 (95 N/mm) for rider between 80/120Kg
• 01096-34 (100 N/mm) for rider between 90/130Kg
• 01096-36 (105 N/mm) for rider between 100/140Kg
• 01096-39 (110 N/mm) for rider between 110/150Kg
• 01096-41 (115 N/mm) for rider between 120/160Kg
• 01096-44 (120 N/mm) for rider between 130/170Kg
